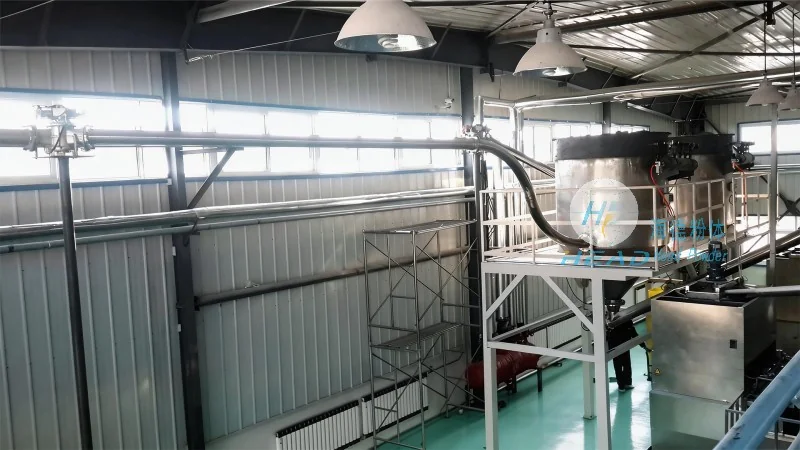

[Detailed Explanation of Carbide Slag Pneumatic Conveying Systems]

Carbide slag, a byproduct from the production of calcium carbide, presents unique handling challenges due to its high moisture content, abrasive nature, and potential for dust generation. Traditional methods of transporting such materials often involve high operational costs, equipment wear, and environmental concerns. Pneumatic conveying systems offer a sophisticated solution to these challenges, enabling efficient, safe, and environmentally friendly transportation of carbide slag from production sites to disposal or processing facilities.

Key Components of the Pneumatic Conveying System

The pneumatic conveying system for carbide slag typically consists of several critical components that work in tandem to ensure reliable operation. These include the material feed hopper, which stores and regulates the flow of carbide slag; the air compressor or blower, which generates the necessary air pressure to move the material; the conveying line, which can be either positive or negative pressure depending on the system design; and the discharge hopper or silo, where the material is deposited. Each component is engineered to withstand the harsh conditions associated with carbide slag, including high temperatures, corrosive properties, and abrasive wear.

Types of Pneumatic Conveying Systems

There are primarily two types of pneumatic conveying systems used for carbide slag: positive pressure and negative pressure systems. Positive pressure systems use air compressors to force air and material through the conveying line, making them suitable for long-distance or high-capacity applications. Negative pressure systems, on the other hand, use vacuum pumps to draw material into the line, which is often preferred for short-distance or dusty environments to minimize dust emissions. The choice between these systems depends on factors such as the distance between the source and destination, the required capacity, and the environmental regulations in the operating area.

Advantages of Pneumatic Conveying for Carbide Slag

Implementing a pneumatic conveying system for carbide slag offers numerous advantages over traditional methods. Firstly, it significantly reduces labor costs by automating the material handling process, eliminating the need for manual loading and unloading. Secondly, it minimizes equipment wear and tear, as the material is conveyed without direct contact with the conveying line, reducing the risk of abrasion and corrosion. Thirdly, it enhances safety by containing dust and preventing the release of hazardous particles into the environment. Additionally, pneumatic systems are highly flexible, allowing for easy integration with existing production lines and the ability to adjust flow rates as needed.

Operational Considerations and Maintenance

Proper operation and maintenance of the pneumatic conveying system are crucial for maximizing efficiency and extending the lifespan of the equipment. Regular inspections of the air compressor and blower are essential to ensure optimal performance and prevent breakdowns. The conveying line should be checked for blockages or leaks, as these can lead to reduced efficiency and increased energy consumption. Additionally, the material feed hopper and discharge hopper should be cleaned regularly to prevent buildup and ensure smooth material flow. Proper maintenance not only improves system performance but also reduces downtime and maintenance costs over the long term.

Case Study: Application by Shandong HeadPowder Engineering Co., Ltd.

Shandong HeadPowder Engineering Co., Ltd., a leading provider of engineering solutions in China, has successfully implemented pneumatic conveying systems for carbide slag in several industrial projects. By leveraging their expertise in material handling and process engineering, the company has designed and installed systems that meet the specific needs of their clients. For instance, one project involved transporting carbide slag over a distance of 500 meters from the production plant to a disposal site. The system, equipped with a positive pressure blower and a robust conveying line, achieved a capacity of 50 tons per hour while maintaining low energy consumption and minimal dust emissions. This case study demonstrates the effectiveness of pneumatic conveying systems in addressing the unique challenges of carbide slag transportation and highlights the capabilities of Shandong HeadPowder Engineering Co., Ltd. in delivering tailored solutions for industrial clients.
