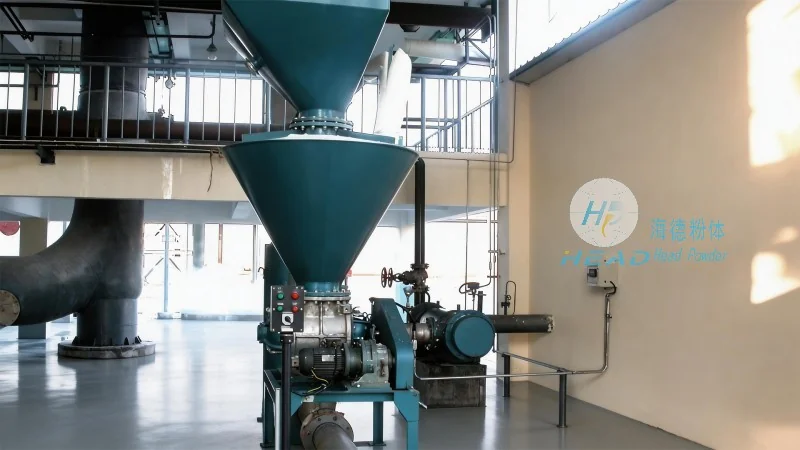

HeadPowder, a leading engineering company based in Shandong, China, specializes in the design, manufacturing, and installation of advanced dust-free bulk bag unloading stations and pneumatic conveying systems. These systems are engineered to provide efficient, safe, and clean material handling solutions for various industrial applications. This article provides an overview of the equipment, its structural components, and the underlying principles of operation.
The dust-free bulk bag unloading station is a critical piece of equipment in many industrial processes, particularly in sectors such as food, pharmaceuticals, chemicals, and construction. Its primary function is to safely and efficiently transfer bulk materials from bulk bags (also known as super sacks or FIBCs) into processing equipment or storage containers. The system typically integrates a bulk bag lifting mechanism, a dust collection system, and a pneumatic conveying line to ensure a clean and controlled material transfer. The pneumatic conveying system then transports the material from the unloading station to the desired destination within the facility.
The dust-free bulk bag unloading station and pneumatic conveying system consist of several key components that work in concert to achieve optimal performance. These components include:
1. Bulk Bag Lifting and Support System: This component is responsible for securely lifting and positioning the bulk bag during the unloading process. It often features a frame or stand that supports the bag, along with a hoist or crane system to raise the bag to the correct height. The lifting mechanism ensures that the bag is properly aligned with the discharge spout, minimizing the risk of material spillage or bag damage.
2. Dust Collection and Filtration Unit: A critical feature of the dust-free system is the integrated dust collection unit. This unit is designed to capture and filter any airborne particles that may be released during the unloading process. It typically includes a dust collector with a high-efficiency filter, such as a HEPA or bag filter, to ensure that the air is clean and safe to release back into the environment. The filtration system helps maintain a clean working environment and prevents dust from contaminating other parts of the facility.
3. Pneumatic Conveying Line and Airflow Control: The pneumatic conveying system utilizes compressed air to transport the material from the unloading station to the processing equipment. The line consists of pipes, valves, and a blower or air compressor that generates the necessary airflow. The system is designed to handle various material types, including powders, granules, and fine particles, with minimal pressure loss and high efficiency. Airflow control devices, such as dampers and regulators, are used to adjust the air pressure and flow rate to match the material characteristics and system requirements.
4. Material Discharge and Transfer Mechanism: The discharge mechanism is responsible for releasing the material from the bulk bag into the pneumatic conveying line. This may involve a spout or valve that connects the bag to the conveying line, allowing the material to be drawn into the system by the airflow. The transfer mechanism ensures that the material is moved smoothly and continuously, without blockages or clogs. Some systems may include a rotary valve or feeder to regulate the flow rate and prevent overloading the conveying line.
The pneumatic conveying system operates on the principle of using compressed air to transport bulk materials through a pipeline. There are two main types of pneumatic conveying systems: pressure and vacuum systems. The pressure system uses a blower or air compressor to generate positive pressure in the conveying line, pushing the material forward. The vacuum system, on the other hand, uses a vacuum pump to create a negative pressure, drawing the material into the line.
In the context of the dust-free bulk bag unloading station, a pressure system is commonly used. The process begins with the bulk bag being lifted and positioned over the discharge spout. The dust collection unit is activated to capture any dust generated during the initial opening of the bag. Once the bag is fully open and the dust is contained, the pneumatic conveying system is started. The blower generates compressed air, which is directed into the conveying line and the bulk bag. The air pressure forces the material out of the bag and into the line, where it is transported to the processing equipment.
The material is carried by the air stream as a suspension, with the air velocity maintained at a level sufficient to prevent the material from settling or clogging the line. The conveying line is typically made of materials such as stainless steel or plastic, which are resistant to corrosion and wear from the material being transported. The system may include bends, elbows, and other components to direct the material flow, and these are designed to minimize pressure loss and maintain efficient transport.
Implementing a dust-free bulk bag unloading station and pneumatic conveying system offers several advantages for industrial operations. These include:
1. Enhanced Safety and Health: The integrated dust collection system significantly reduces the exposure of workers to airborne particles, improving workplace safety and reducing the risk of respiratory illnesses. The enclosed design of the system also minimizes the risk of material spills and contamination.
2. Improved Efficiency and Productivity: The automated and continuous operation of the system reduces labor costs and increases throughput compared to manual unloading methods. The efficient material transfer reduces downtime and ensures a steady supply of materials to the processing equipment.
3. Clean and Hygienic Operation: The dust-free design prevents contamination of the material and the surrounding environment, which is particularly important in industries such as food and pharmaceuticals where product purity is critical. The system also helps maintain a clean and organized workspace, reducing the need for extensive cleaning and maintenance.
4. Versatility and Adaptability: The system can be customized to handle a wide range of bulk materials, including powders, granules, and fine particles. It can also be integrated with various processing equipment, such as mixers, reactors, and storage tanks, to create a comprehensive material handling solution.
HeadPowder's dust-free bulk bag unloading stations and pneumatic conveying systems are engineered to provide reliable, efficient, and safe material handling solutions for a variety of industrial applications. By integrating advanced structural components and working principles, these systems ensure optimal performance while maintaining a clean and controlled working environment. With their versatility and adaptability, they are an essential component of modern industrial operations, helping to improve productivity, safety, and product quality.
