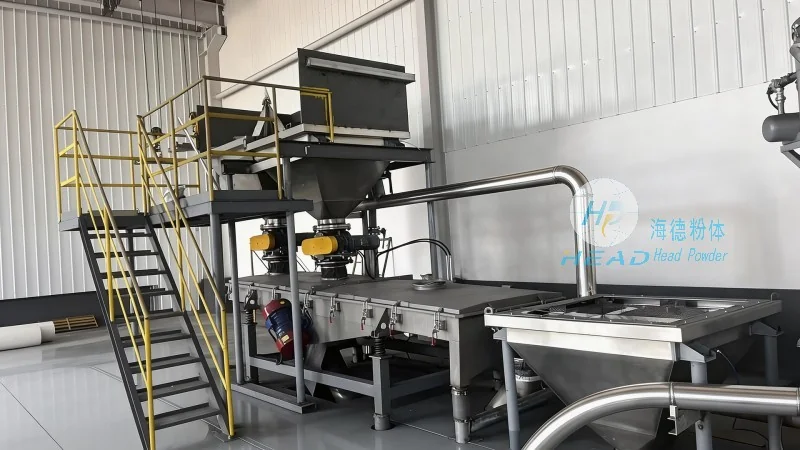

[Cotton Fiber Pneumatic Conveying Equipment: An Introduction to Its Structure and Working Principle]

For industries dealing with cotton fiber, efficient and reliable material handling is crucial. Pneumatic conveying systems offer a solution that minimizes dust, reduces labor costs, and enhances overall operational safety. This article provides an overview of cotton fiber pneumatic conveying equipment, focusing on its structural design and operational principles.

Overview of Cotton Fiber Pneumatic Conveying Equipment

Pneumatic conveying systems are designed to transport bulk materials like cotton fibers through a network of pipes using air pressure. The primary components of such equipment include a hopper for material storage, a feeder to control the flow rate, a conveying line with appropriate diameter and length, and a receiver for the discharged material. These components work in tandem to ensure smooth and continuous material transport. The system can be categorized into two main types: pressure and vacuum systems, each with distinct applications based on the material characteristics and distance requirements.

Structural Components and Their Functions

The structural design of cotton fiber pneumatic conveying equipment is tailored to handle the specific properties of cotton, such as its lightweight nature and tendency to generate dust. Key components include:

• Hopper: A large container that stores the raw cotton fibers before they are fed into the system. It is equipped with a lid to prevent contamination and an outlet valve to regulate the material flow.
• Feeder: This component ensures a consistent and controlled flow of cotton fibers into the conveying line. Common types include rotary valves, screw feeders, or vibratory feeders, which are chosen based on the material's bulk density and flow characteristics.
• Conveying Line: The pipeline through which the cotton fibers are transported. The diameter of the line is critical; larger diameters are used for longer distances or higher material loads, while smaller diameters are suitable for shorter distances or lower loads. The line is typically made of corrosion-resistant materials like stainless steel or PVC to withstand the abrasive nature of cotton fibers.
• Receiver: The final container where the conveyed cotton fibers are deposited. It is designed to minimize dust emissions and ensure complete discharge of the material.
• Blowers or Vacuum Pumps: These are the power sources that generate the air pressure or vacuum needed to move the cotton fibers. The choice between a positive displacement blower and a centrifugal fan depends on the system's pressure requirements and the material's characteristics.

Working Principle of the Equipment

The operation of cotton fiber pneumatic conveying equipment follows a simple yet effective process. Initially, the cotton fibers are fed from the hopper into the conveying line via the feeder. Simultaneously, the blower or vacuum pump generates a flow of air within the line. In a pressure system, the air is forced through the line, carrying the cotton fibers along with it. In a vacuum system, the air is drawn out of the line, creating a negative pressure that pulls the fibers into the line. The combination of air flow and the material's density ensures that the cotton fibers are transported efficiently and without clogging the system.

Advantages of Using Pneumatic Conveying for Cotton Fiber Handling

Implementing pneumatic conveying systems for cotton fiber handling offers several advantages over traditional methods like belt conveyors or manual handling. These include:

• Reduced Dust and Contamination: The enclosed system prevents dust from escaping, maintaining a cleaner working environment and reducing the risk of material contamination.
• Lower Labor Costs: Automated feeding and conveying reduce the need for manual labor, leading to cost savings and improved operational efficiency.
• Enhanced Safety: By eliminating manual handling of bulk materials, the system minimizes the risk of accidents and injuries in the workplace.
• Space Efficiency: The compact design of pneumatic conveying systems allows for better utilization of available space, especially in facilities with limited floor area.
• Flexibility in Layout: The system can be easily reconfigured to accommodate changes in production processes or facility layout without major structural modifications.

Applications in the Textile Industry

Cotton fiber pneumatic conveying equipment is widely used in various stages of the textile manufacturing process. It is commonly employed in:

• Raw Material Handling: Transporting raw cotton bales or loose fibers from storage to processing units.
• Processing Stages: Moving fibers between different processing machines, such as carding, combing, and spinning, ensuring a continuous flow of material.
• Waste Management: Conveying waste or rejected fibers from processing equipment to recycling or disposal units.
